| Overview |
|---|

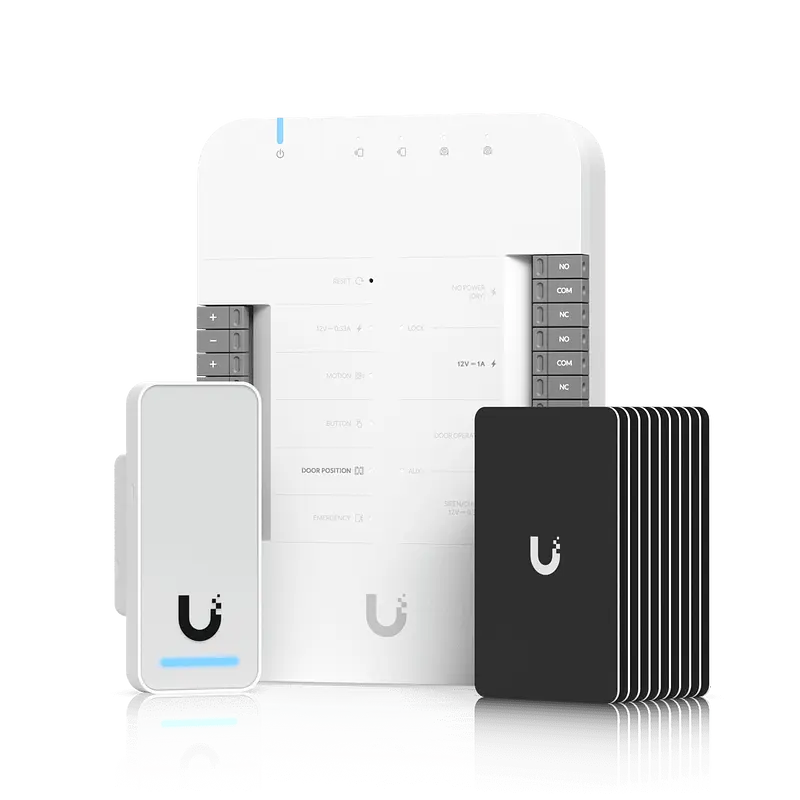

| In the Box | (1) Door Hub
(1) G2 Reader
(10) Access Cards |
|---|
| Touch Pass | Nej |
|---|
| Door Hub |
|---|
| Dimensions | 174.9 x 126 x 32.9 mm
(6.9 x 5 x 1.3") |
|---|
| Supported Doors | 1 |
|---|
| Maximum User Count | Nej |
|---|
| Input Terminals | (2) Door exit request
(1) Door position
(1) Emergency |
|---|
| Power Method | PoE++
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU |
|---|
| Weight | 363 g (12.8 oz) |
|---|
| Enclosure Material | Polycarbonate |
|---|
| Mount Material | Polycarbonate |
|---|
| Mounting | DIN-rail (Included) |
|---|
| Networking Interface | (5) 10/100/1000 Base-T |
|---|
| PoE Interface | (1) PoE++ input, 50V DC, 1A
(4) PoE outputs, 50V DC, 30W per port
(Max 45W aggregated) |
|---|
| Max. Power Consumption | 30W (Without PoE output)
50W (With PoE output) |
|---|
| Digital Input | Request to exit, request to enter, remote release, door position sensor |
|---|
| Dry Output Relay | Lock: 30V DC, 1A
Aux: 30V DC, 1A |
|---|
| Powered Output Relay | Lock: 12V DC, 1A
Aux: 12V DC, 0.33A
12V DC, 0.33A |
|---|
| LEDs | B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
|---|
| Button | (1) Factory reset |
|---|
| Recommend Max. Cable Length: UA-Lock-Electric
(400mA) | 24 AWG length: 25 m (82 ft)
22 AWG length: 42 m (138 ft)
20 AWG length: 66 m (217 ft)
18 UACC-Cable-DoorLockRelay length: 100 m (328 ft) |
|---|
| Recommend Max. Cable Length: UA-Lock-Magnetic-540kg (500mA) | 24 AWG length: 20 m (66 ft)
22 AWG length: 32 m (105 ft)
20 AWG length: 51 m (167 ft)
18 UACC-Cable-DoorLockRelay length: 80 m (262 ft) |
|---|
| Recommend Max. Cable Length: UA-Lock-Magnetic-270kg (800mA) | 24 AWG length: 12 m (39 ft)
22 AWG length: 20 m (66 ft)
20 AWG length: 30 m (98 ft)
18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) |
|---|
| Recommend Max. Cable Length: Other locks
(1A) | 24 AWG length: 9 m (30 ft)
22 AWG length: 15 m (49 ft)
20 AWG length: 24 m (79 ft)
18 UACC-Cable-DoorLockRelay length: 36 m (118 ft) |
|---|
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
|---|
| UL 294 Level | Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I |
|---|
| UL 294 Statement | Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
|---|
| CAN/ULC-60839-11-1 Grade | Grade assignment: 1 |
|---|
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
|---|
| Ambient Operating Humidity | 5 to 95% noncondensing |
|---|
| NDAA Compliant | Ja |
|---|
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
|---|
| UniFi Application Suite | Nej |
|---|
| Management Application | UniFi Access |
|---|
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
|---|
| Document number, and issue date and/or revision level | UA-Hub-Door002, V01 |
|---|
| G2 Reader |
|---|
| Integrated Camera | Nej |
|---|
| NFC Card & Keyfob Access | Ja |
|---|
| PIN Access | Nej |
|---|
| Mobile Unlock | Ja |
|---|
| Handwave Request to Exit | Ja |
|---|
| Two-Way Intercom & Doorbell Access | Nej |
|---|
| Weatherproofing | IP55 |
|---|
| Indoor and Outdoor Use | Ja |
|---|
| Connectivity | BLE 4.1
NFC |
|---|
| Supported Voltage Range | 48V DC |
|---|
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
|---|
| Sensors | Proximity sensor |
|---|
| Microphone | Nej |
|---|
| Speaker | (1) Yes, 0.7W |
|---|
| NFC Read Range | < 30 mm (1.18'') |
|---|
| NFC Frequency | 13.56 MHz |
|---|
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T |
|---|
| NFC Standards | Nej |
|---|
| Access Card |
|---|
| Format | ISO 7810 ID-1 |
|---|
