Adgangskontrol

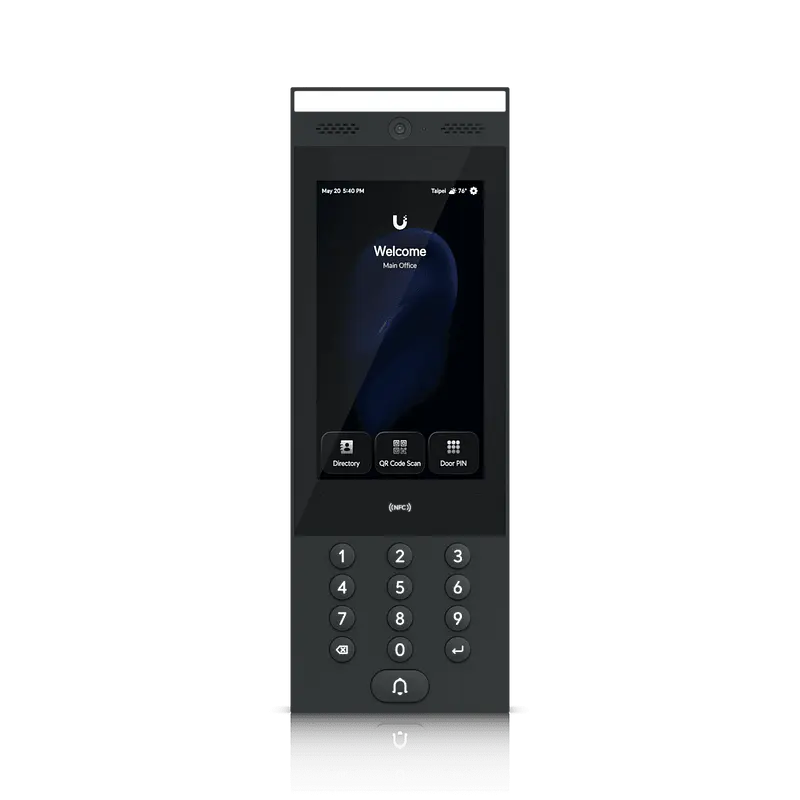

Access G3 Intercom

Dørstation med kamera, touchskærm og flere oplåsningsmetoder til UniFi Access

MPN UA-G3-INTERCOM GTIN 810177161622
2.999DKK ekskl. moms
3.749DKK inkl. moms
På lager (52)
Levering
3-5 hverdage
Fragt
Gratis over 1.000 kr
Vægt
0.97 kg

Priser ekskl. moms · kun B2B. Fejl kan forekomme i billeder og specifikationer.

Om produktet

Beskrivelse

Access G3 Intercom er en dørstation fra Ubiquiti til virksomheder, der styrer adgang gennem UniFi Access. Enheden kombinerer kamera, touchskærm og totvejs lyd, så besøgende kan ringe på og tale med en medarbejder, mens den ansvarlige ser hvem der står ved døren.

Brugere og gæster kan låse op på flere måder: NFC-kort og nøglebrikker, PIN-kode på keypad, QR-kode, ansigtsgenkendelse samt mobil oplåsning via Apple og Google Wallet. Det gør det muligt at tildele forskellige adgangsformer til fast personale, leverandører og midlertidige besøgende.

Enheden er bygget til udendørs montering og tåler at sidde eksponeret ved indgange og porte. Med sine mål på cirka 325 x 114 mm dækker den dørklokke, samtaleanlæg og adgangskontrol i én enhed.

Vælg Access G3 Intercom, når du allerede kører UniFi Access, eller planlægger at gøre det, og har brug for en hoveddørsstation med video, tale og fleksibel oplåsning. Al administration foregår i UniFi Access sammen med resten af dit adgangssystem.

Tekniske data

Specifikationer

Grid overview
AppleTouch Pass
CameraJa
DisplayTouch Display
LivestreamNej
Physical UnlockKeypad Unlock
SoundTwo-Way Audio
WeatherproofOutdoor Exposed
Overview
Dimensions324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1")
Integrated CameraJa
NFC Card & Keyfob AccessJa
PIN AccessJa
QR Code UnlockJa
Touch PassNej
Apple/Google WalletJa
Mobile UnlockJa
Face UnlockJa
UniFi Application SuiteAccess
Two-Way Intercom & Doorbell AccessJa
NDAA CompliantJa
UL 294 LevelDestructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
WeatherproofingIP65
Mechanical
WeightDevice: 965 g (2.1 lb) Bracket: 445 g (1 lb)
Enclosure MaterialAluminum alloy, UV-stabilized polycarbonate, glass
Mount MaterialPowder-coated stainless steel
MountingWall mount, adapter to the gooseneck pedestal (Included) Surface angle, flush mount, sunshield kit (Optional)
Hardware
Indoor and Outdoor UseYes
Networking Interface(1) GbE RJ45 port
ManagementNej
ConnectivityBLE 4.2 NFC
Power MethodPoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption13W
Supported Voltage Range48V DC
Video: Max. Frame Rate30 FPS
Video: Resolution2MP 1200 x 1600 (3:4)
Optics: Resolution8 MP (2448 × 3264)
Optics: Field of ViewH: 79.4°, V: 97.5°, D: 118.2°
SensorsProximity sensor ALS sensor
Display: Size177 mm (7") diagonal
Display: Screen TechnologyCapacitive multi-touch
Display: LuminanceMax. 1000 nits (Typical)
Display: Screen OrientationPortrait
Display: Resolution1024 x 600 px
MicrophoneJa
SpeakerJa
NFC Frequency13.56 MHz
NFC Read Range< 30 mm (1.18'')
NFC TechnologyISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
LEDsAmber <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>
Buttons(1) Factory reset
PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 StatementCompliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 GradeGrade assignment: I
CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision levelUA-G3-Intercom, V01
Ambient Operating TemperatureDevice: -30 to 60° C (-22 to 140° F) Display: -25 to 60° C (-13 to 140° F)
Ambient Operating Humidity5 to 90% noncondensing
Software
Management ApplicationAccess
Software InformationThe software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>
