| Overview |
|---|

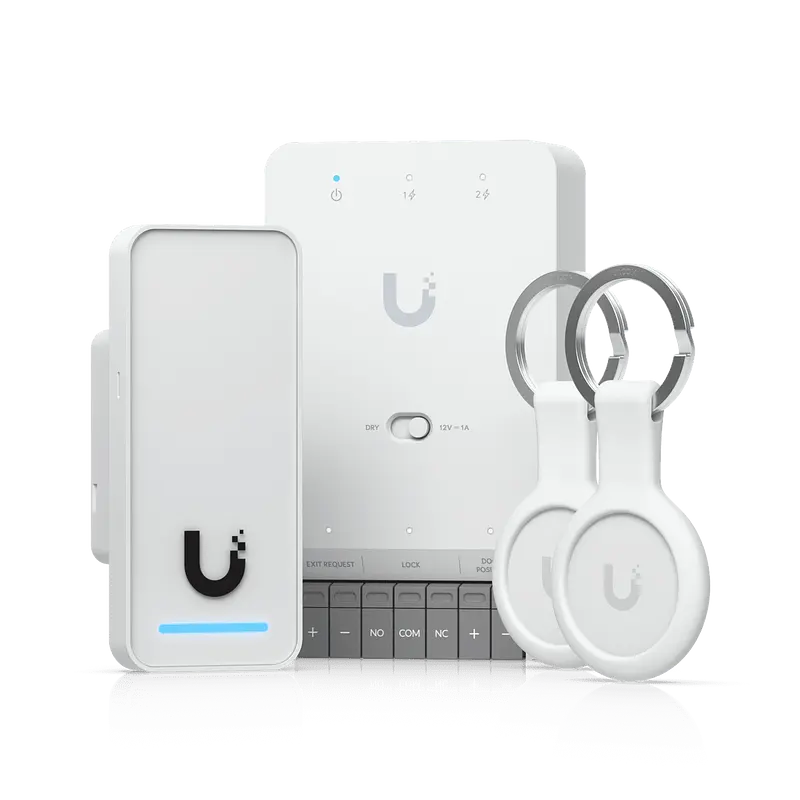

| In the Box | (1) Door Hub Mini
(1) G3 Reader
(2) Pocket Keyfobs |
|---|
| Touch Pass | 10 free 1-year Touch Passes included
<a href="https://help.ui.com/hc/en-us/articles/27130425853079-UniFi-Access-Touch-Pass-Configuration" target="_blank" rel="noopener noreferrer">Learn More</a> |
|---|
| Door Hub Mini |
|---|
| Dimensions | 113 x 66 x 27.6 mm
(4.4 x 2.6 x 1.1") |
|---|
| Supported Doors | 1 |
|---|
| Maximum User Count | 3,000 |
|---|
| Input Terminals | (1) Door Exit Request
(1) Door Position |
|---|
| Power Method | PoE++
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU |
|---|
| Weight | 190 g (6.7 oz) |
|---|
| Enclosure Material | Polycarbonate, metal |
|---|
| Mounting | DIN-rail (Included) |
|---|
| Networking Interface | (3) GbE RJ45 ports |
|---|
| PoE Interface | (1) PoE++ input, 50V DC, 1A
(2) PoE outputs, 50V DC, 30W per port
(Max 45W aggregated) |
|---|
| Max. Power Consumption | 19W (Without PoE output)
50W (With PoE output) |
|---|
| Digital Input | Request to exit, door position sensor |
|---|
| Dry Output Relay | 30V DC, 1A |
|---|
| Wet Output Relay | 12V DC, 1A |
|---|
| Powered Output Relay | Nej |
|---|
| LEDs | B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
|---|
| Button | (1) Factory reset
(1) Dry/Wet switch |
|---|
| Recommend Max. Cable Length: UA-Lock-Electric
(400mA) | 24 AWG length: 25 m (82 ft)
22 AWG length: 42 m (138 ft)
20 AWG length: 66 m (217 ft)
18 UACC-Cable-DoorLockRelay length: 100 m (328 ft) |
|---|
| Recommend Max. Cable Length: UA-Lock-Magnetic-540kg (500mA) | 24 AWG length: 12 m (39 ft)
22 AWG length: 20 m (66 ft)
20 AWG length: 30 m (98 ft)
18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) |
|---|
| Recommend Max. Cable Length: UA-Lock-Magnetic-270kg (800mA) | 24 AWG length: 12 m (39 ft)
22 AWG length: 20 m (66 ft)
20 AWG length: 30 m (98 ft)
18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) |
|---|
| Recommend Max. Cable Length: Other locks
(1A) | 24 AWG length: 9 m (30 ft)
22 AWG length: 15 m (49 ft)
20 AWG length: 24 m (79 ft)
18 UACC-Cable-DoorLockRelay length: 36 m (118 ft) |
|---|
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
|---|
| UL 294 Level | Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I |
|---|
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
|---|
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
|---|
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
|---|
| Ambient Operating Humidity | 5 to 90% noncondensing |
|---|
| NDAA Compliant | Ja |
|---|
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
|---|
| Management Application | UniFi Access |
|---|
| UniFi Application Suite | Nej |
|---|
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
|---|
| Document number, and issue date and/or revision level | UA-Hub-Door-Mini, V01 |
|---|
| G3 Reader Pro |
|---|
| Integrated Camera | Nej |
|---|
| NFC Card & Keyfob Access | Nej |
|---|
| PIN Access | Nej |
|---|
| Apple/Google Wallet | Nej |
|---|
| Mobile Unlock | Nej |
|---|
| Face Unlock | Nej |
|---|
| Handwave Request to Exit | Nej |
|---|
| Two-Way Intercom & Doorbell Access | Nej |
|---|
| Weatherproofing | Nej |
|---|
| Mount Material | Nej |
|---|
| Indoor and Outdoor Use | Nej |
|---|
| Connectivity | Nej |
|---|
| Supported Voltage Range | Nej |
|---|
| ESD/EMP Protection | Nej |
|---|
| Video: Max. Frame Rate | Nej |
|---|
| Video: Resolution | Nej |
|---|
| Optics: Resolution | 12 MP (3072 × 4096) |
|---|
| Optics: Field of View | H: 98.6°, V: 125.7°, D: 157.8° |
|---|
| Sensors | Nej |
|---|
| Display: Size | Nej |
|---|
| Display: Screen Technology | Nej |
|---|
| Display: Luminance | Nej |
|---|
| Display: Screen Orientation | Nej |
|---|
| Display: Resolution | Nej |
|---|
| Microphone | Nej |
|---|
| Speaker | Nej |
|---|
| NFC Frequency | Nej |
|---|
| NFC Read Range | Nej |
|---|
| NFC Technology | Nej |
|---|
| Pocket Keyfob |
|---|
| Certification | CE |
|---|
