Adgangskontrol

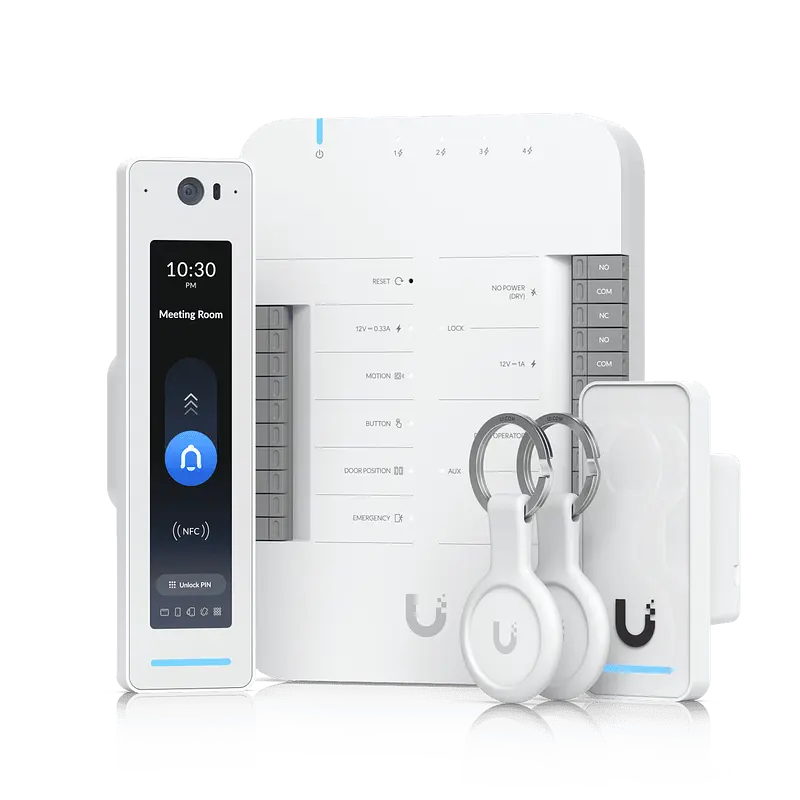

G3 Starter Kit Pro

Komplet startpakke til UniFi Access med dørhub og to læsere, til styring af én dør fra start.

MPN UA-G3-SK-PRO GTIN 810084699317

4.159DKK ekskl. moms

5.199DKK inkl. moms

Forventet 09.09.2026

Få besked, når varen er på lager

Én mail, når varen er tilbage. Ingen nyhedsbreve.

Levering: 3-5 hverdage
Fragt: Gratis over 1.000 kr
Vægt: 0.5 kg

Priser ekskl. moms · kun B2B. Fejl kan forekomme i billeder og specifikationer.

Om produktet

Beskrivelse

G3 Starter Kit Pro er en samlet startpakke til Ubiquitis UniFi Access adgangskontrol. Pakken indeholder en Door Hub, en G3 Reader Pro med touch-skærm, en almindelig G3 Reader samt to nøglebrikker, så du har alt til at komme i gang med adgangsstyring på én dør.

Door Hub er kernen i løsningen. Den driver læsere og lås via PoE++, og den har indgange til exit-knap, dørposition og nødåbning samt relæudgange til selve låsen. Adgang styres centralt i UniFi Access, hvor du opretter brugere, tildeler rettigheder og følger med i hvem der går ind hvornår. Pakken kan håndtere op til 6.000 brugere.

Med to læsere kan du dække både ind- og udgang på samme dør, eller placere Pro-læseren der hvor du vil have touch-skærm og sætte den enklere læser et andet sted. Der følger ti Touch Pass-licenser med i et år, så medarbejdere kan bruge telefonen som adgangsmiddel.

Vælg denne pakke når du skal i gang med adgangskontrol på ét dørparti og allerede kører UniFi, eller planlægger at gøre det. Skal du dække flere døre, kan løsningen udvides med yderligere hubs og læsere efter behov.

Tekniske data

Specifikationer

Overview
In the Box	(1) Door Hub (1) G3 Reader Pro (1) G3 Reader (2) Pocket Keyfobs
Touch Pass	10 free 1-year Touch Passes included <a href="https://help.ui.com/hc/en-us/articles/27130425853079-UniFi-Access-Touch-Pass-Configuration" target="_blank" rel="noopener noreferrer">Learn More</a>
Door Hub
Dimensions	174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
Supported Doors	1
Maximum User Count	6,000
Input Terminals	(2) Door exit request (1) Door position (1) Emergency
Power Method	PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Weight	363 g (12.8 oz)
Enclosure Material	Polycarbonate
Mount Material	Polycarbonate
Mounting	DIN-rail (Included)
Networking Interface	(5) 10/100/1000 Base-T
PoE Interface	(1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 30W per port (Max 45W aggregated)
Max. Power Consumption	30W (Without PoE output) 50W (With PoE output)
Digital Input	Request to exit, request to enter, remote release, door position sensor
Dry Output Relay	Lock: 30V DC, 1A Aux: 30V DC, 1A
Powered Output Relay	Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A
LEDs	B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>
Button	(1) Factory reset
Recommend Max. Cable Length: UA-Lock-Electric (400mA)	24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
Recommend Max. Cable Length: UA-Lock-Magnetic-540kg (500mA)	24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
Recommend Max. Cable Length: UA-Lock-Magnetic-270kg (800mA)	24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Recommend Max. Cable Length: Other locks (1A)	24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling Requirements	Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Level	Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
UL 294 Statement	Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade	Grade assignment: 1
Ambient Operating Temperature	0 to 40° C (32 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing
NDAA Compliant	Nej
Certifications	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
UniFi Application Suite	Nej
Management Application	UniFi Access
Software Information	The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>
Document number, and issue date and/or revision level	UA-Hub-Door002, V01
G3 Reader Pro
Integrated Camera	Ja
NFC Card & Keyfob Access	Ja
PIN Access	Ja
Apple/Google Wallet	Ja
Mobile Unlock	Ja
Face Unlock	Ja
Handwave Request to Exit	Nej
Two-Way Intercom & Doorbell Access	Ja
Weatherproofing	IP55
Indoor and Outdoor Use	Ja
Connectivity	BLE 4.2 NFC
Supported Voltage Range	48V DC
ESD/EMP Protection	Air: ±15kV, contact: ±8kV
Video: Max. Frame Rate	30 FPS
Video: Resolution	2MP 1200 x 1600 (3:4)
Optics: Resolution	12 MP (3072 × 4096)
Optics: Field of View	H: 98.6°, V: 125.7°, D: 157.8°
Sensors	Proximity sensor
Display: Size	120 mm (4.7") diagonal
Display: Screen Technology	Capacitive touch
Display: Luminance	480 nits (Typical)
Display: Screen Orientation	Portrait
Display: Resolution	1280 x 286 px
Microphone	Ja
Speaker	(1) Yes, 1.5W
NFC Frequency	13.56 MHz
NFC Read Range	< 30 mm (1.18'')
NFC Technology	ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
Pocket Keyfob
Certification	CE
