Adgangskontrol

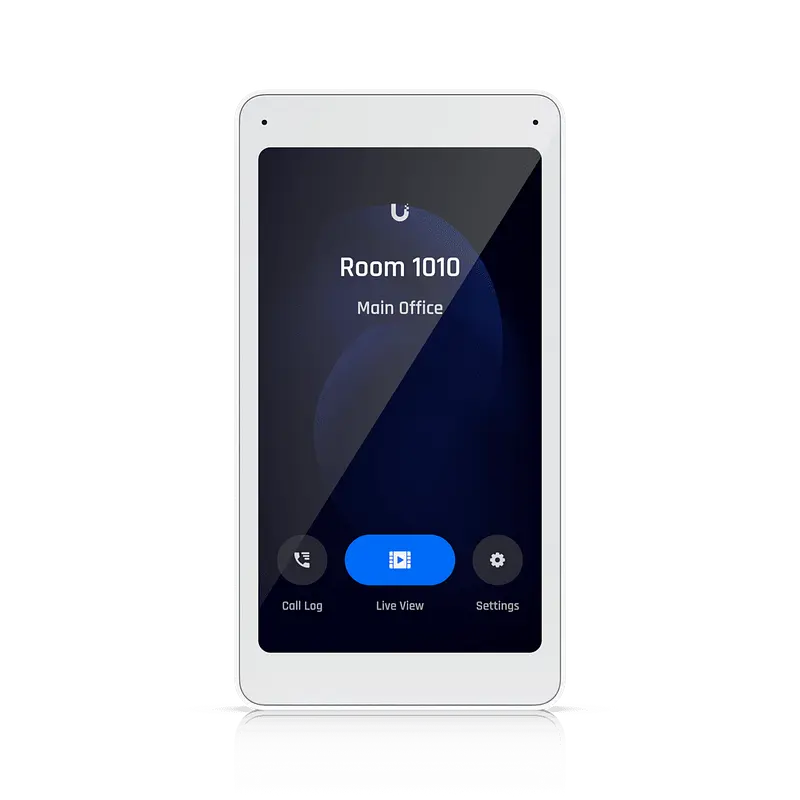

Access Intercom Viewer

Indendørs svarenhed med touchskærm til UniFi Access, til besvarelse af dørkald og oplukning fra receptionen.

MPN UA-INTERCOM-VIEWER-3 GTIN 810084695906
3.529DKK ekskl. moms
4.411DKK inkl. moms
Forventet 28.09.2026

Afsendes ca. 28.09.2026 (bestillingsvare, bekræftet levering på vej)

Levering
3-5 hverdage
Fragt
Gratis over 1.000 kr
Vægt
0.17 kg

Priser ekskl. moms · kun B2B. Fejl kan forekomme i billeder og specifikationer.

Om produktet

Beskrivelse

Access Intercom Viewer er en indendørs enhed med touchskærm, der fungerer som svarstation til et UniFi Access-anlæg. Når nogen ringer på ved en dørstation, kan personalet se live-video, tale med den besøgende via tovejslyd og låse døren op uden at forlade skrivebordet.

Enheden er tænkt til receptioner, kontorer og andre steder, hvor der er behov for at besvare henvendelser fra flere døre ét sted. Den har ikke eget kamera eller kortlæser, men henter livestream fra tilkoblede dørstationer og bruges primært til at overvåge og styre adgang indefra.

Vælg denne, hvis I allerede kører UniFi Access og vil have en fast placeret svarenhed med skærm frem for kun at besvare kald via app. Bemærk at den er beregnet til indendørs brug og ikke er vejrbestandig.

Tekniske data

Specifikationer

Grid overview
AppleNej
CameraNej
DisplayTouch display
LivestreamLive View
Physical UnlockNej
SoundTwo-Way Audio
WeatherproofNej
Overview
Dimensions135 x 72 x 31.8 mm (5.3 x 2.8 x 1.3")
Integrated CameraNej
NFC Card & Keyfob AccessNej
PIN AccessNej
QR Code UnlockNej
Touch PassNej
Apple/Google WalletNej
Mobile UnlockJa
Face UnlockNej
UniFi Application SuiteNej
Two-Way Intercom & Doorbell AccessNej
NDAA CompliantJa
UL 294 LevelDestructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
WeatherproofingNej
Mechanical
Weight168 g (5.9 oz)
Enclosure MaterialGlass, polycarbonate
Mount MaterialAluminum alloy
MountingWall (Included) Gang box mount (Optional)
Hardware
Indoor and Outdoor UseIndoor only
Networking Interface(1) 10/100 Mbps RJ45 port
ManagementNej
ConnectivityEthernet
Power MethodPoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption5W
Supported Voltage Range44–57V DC
Video: Max. Frame RateNej
Video: ResolutionNej
Optics: ResolutionNej
Optics: Field of ViewNej
SensorsNej
Display: Size127 mm (5") diagonal
Display: Screen TechnologyNej
Display: Luminance300 nits (Typical)
Display: Screen OrientationPortrait
Display: Resolution1280 x 720 px
MicrophoneJa
SpeakerJa
NFC FrequencyNej
NFC Read RangeNej
NFC TechnologyNej
LEDsNej
Buttons(1) Factory reset
PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 StatementCompliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 GradeGrade assignment: I
CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision levelUA-Intercom-Viewer, V01
Ambient Operating Temperature0 to 40° C (32 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
Software
Management ApplicationAccess
Software InformationThe software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>
