Dream Router 7

Alt-i-en UniFi-gateway med WiFi 7 til mindre kontorer og butikker med op til 300 klienter

MPN UDR7 GTIN 810177160212
2.045DKK ekskl. moms
2.556DKK inkl. moms
På lager (1238)
Levering
3-5 hverdage
Fragt
Gratis over 1.000 kr
Vægt
1.1 kg

Priser ekskl. moms · kun B2B. Fejl kan forekomme i billeder og specifikationer.

Om produktet

Beskrivelse

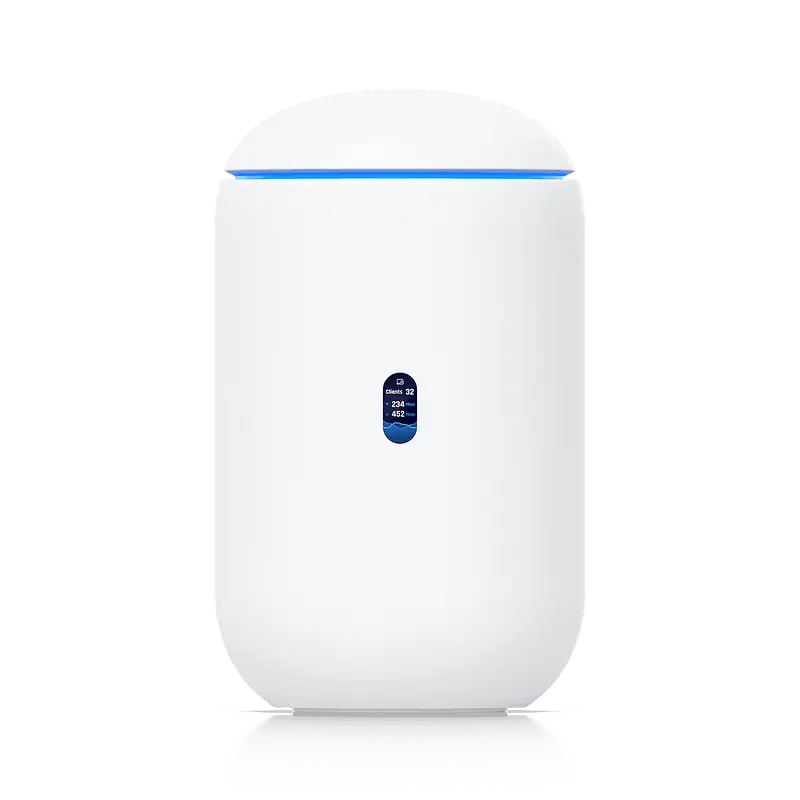

Dream Router 7 er en kompakt gateway fra Ubiquiti, der samler router, firewall, WiFi 7-adgangspunkt og UniFi-controller i én enhed. Den er beregnet til mindre lokationer, hvor du vil køre hele UniFi-økosystemet fra ét sted uden at sætte separat hardware op.

Enheden håndterer op til omkring 300 samtidige klienter og kører IDS/IPS med op til 2,3 Gbps, så du kan filtrere trafik og holde øje med trusler uden at flaske netværket. Den understøtter RADIUS over TLS (RadSec) til sikker autentificering af brugere og enheder.

Ud over Network kører den også Protect, Access, Talk og Connect fra UniFi Application Suite. Du kan tilslutte 30+ UniFi-enheder og et mindre antal kameraer, for eksempel fem HD, to 2K eller ét 4K-kamera, direkte til den indbyggede optagelse.

Vælg Dream Router 7, når du skal dække en enkelt lokation som et kontor, en klinik eller en butik, og gerne vil have router, WiFi og kameraovervågning i samme boks. Skal du håndtere flere kameraer eller mange flere enheder, bør du kigge på en større Dream Machine eller en separat controller.

Tekniske data

Specifikationer

Grid overview
IDS/IPS2.3 Gbps
App SuiteNej
Max. Client Count300
PortsNej
SecurityNej
StorageNej
RADIUS over TLS (RadSec)Ja
IDS/IPS Throughput2.3 Gbps
Overview
Dimensions⌀110 x 184.1 mm (⌀4.3 x 7.3")
UniFi Application Suite: NetworkJa
UniFi Application Suite: ProtectJa
UniFi Application Suite: AccessJa
UniFi Application Suite: TalkJa
UniFi Application Suite: ConnectJa
Managed UniFi Devices30+
Managed Cameras(5) HD (2) 2K (1) 4K
Managed Access HubsNej
Simultaneous Users Connected300+
Max. WAN Port Count4
Default WAN Ports(1) 10G SFP+ (1) 2.5 GbE RJ45
Port Layout: 1 GbE RJ45Nej
Port Layout: 2.5 GbE RJ454 (1 PoE) (2.5G/1G/100M/10M)
Port Layout: 10 GbE RJ45Nej
Port Layout: 10G SFP+1 (10G/1G)
Port Layout: 25G SFP28Nej
Port Layout: 100G QSFP28Nej
Port Layout: MGMTNej
Port Layout: ConsoleNej
Capacity: SSL/TLS Inspection Concurrent SessionsNej
Capacity: Concurrent SessionsNej
Capacity: New Sessions / SecondNej
Form FactorCompact desktop
RedundancyNej
Coverage Area160 m² (1,750 ft²)
MountingNej
WeightNej
Enclosure MaterialNej
Mount MaterialNej
Compute CapacityNej
Security
Stateful FirewallJa
Application-Aware Layer 7 FirewallJa
SSL Inspection & URL FilteringNej
DPI & Traffic IdentificationJa
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)Ja
Content FilteringJa
Intrusion Prevention (IPS/IDS)Ja
Ad BlockingJa
IDS/IPS Signatures20,000+ with CyberSecure
VLAN/Subnet-based Traffic SegmentationJa
VPN & SD-WAN
License-Free SD-WANJa
Site-to-Site VPN: Site MagicJa
Site-to-Site VPN: IPsecJa
Site-to-Site VPN: OpenVPNJa
VPN Server: Identity Endpoint One-Click VPNJa
VPN Server: Teleport Zero-Configuration VPNJa
VPN Server: WireGuardJa
VPN Server: OpenVPNJa
VPN Server: L2TPJa
VPN Client: OpenVPNJa
VPN Client: WireGuardJa
VPN Server Single User Throughput: Identity Endpoint One-Click VPNNej
VPN Server Single User Throughput: TeleportNej
VPN Server Single User Throughput: WireGuardNej
VPN Server Single User Throughput: OpenVPNNej
VPN Server Single User Throughput: L2TPNej
Site-to-Site VPN Single Tunnel Throughput: Site MagicNej
Site-to-Site VPN Single Tunnel Throughput: OpenVPNNej
Site-to-Site VPN Single Tunnel Throughput: IPsecNej
VPN Client Single Tunnel Throughput: WireGuardNej
VPN Client Single Tunnel Throughput: OpenVPNNej
Networking
Multi-WAN Load BalancingJa
Shadow Mode (VRRP) High AvailabilityNej
LACP Port AggregationNej
Dynamic Routing: OSPFJa
Dynamic Routing: BGPNej
Advanced QoSJa
Multicast DNS (mDNS)Ja
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)Ja
Integrated RADIUS ServerJa
Additional Internet Failover with UniFi LTE BackupJa
Internet Quality and Outage ReportingJa
MAC Address Table Size2,000
Policy-based WAN and VPN RoutingJa
Customizable DHCP ServerJa
IPv6 ISP SupportJa
IGMP ProxyJa
Virtual Network OverrideJa
All Traffic FlowsNej
Integrated WiFi
WiFi Standard802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Throughput: 6 GHz5.7 Gbps
Throughput: 5 GHz4.3 Gbps
Throughput: 2.4 GHz688 Mbps
MIMO: 6 GHz2 x 2 (DL/UL MU-MIMO)
MIMO: 5 GHz2 x 2 (DL/UL MU-MIMO)
MIMO: 2.4 GHz2 x 2 (DL/UL MU-MIMO)
Antenna Gain: 6 GHz6 dBi
Antenna Gain: 5 GHz7 dBi
Antenna Gain: 2.4 GHz5 dBi
Max. TX Power: 6 GHz24 dBm
Max. TX Power: 5 GHz26 dBm
Max. TX Power: 2.4 GHz23 dBm
Wireless SecurityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs4 per Radio
AntennasNej
Supported Data Rates: 802.11be (WiFi 7)7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Supported Data Rates: 802.11ax (WiFi 6/6E)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Supported Data Rates: 802.11ax (WiFi 6)Nej
Supported Data Rates: 802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
Supported Data Rates: 802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Supported Data Rates: 802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
Supported Data Rates: 802.11b1, 2, 5.5, 11 Mbps
Supported Data Rates: 802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
Hardware
NVR StoragePre-installed 64GB microSD for NVR
Expansion SlotMicroSD Card
Networking InterfaceNej
PoE Budget15.4W
Max. PoE Wattage per Port by PSE: PoE15.4W
Max. PoE Wattage per Port by PSE: PoE+Nej
Max. PoE Wattage per Port by PSE: PoE++Nej
Max. PoE Wattage per Port by PSE: PoE+++Nej
Voltage Range PoE Mode44-57V
Max. Power Consumption26W (Excluding PoE output)
Power MethodUniversal AC input, 100–240V AC, 1.5A Max, 50/60 Hz
Power SupplyAC/DC, Internal, 50W
Supported Voltage Range100–240V AC
Heat Dissipation89 BTU/hr (Excluding PoE Output)
ProcessorQuad-core ARM® Cortex®-A53 at 1.5 GHz
MemoryNej
System Memory3 GB
On-board StorageNej
LCM Display0.96" status display
ManagementEthernet Bluetooth
LEDs: EthernetNej
LEDs: SFP+Nej
LEDs: SFP28Nej
LEDs: QSFP28Nej
LEDs: SystemJa
LEDs: RPSNej
LEDs: PSUNej
LEDs: HDDNej
LEDs: Swappable FanNej
LEDs: AC OutletNej
LEDs: CRPSNej
LEDs: MicroSDNej
LEDs: SIMNej
Button(1) Factory reset
ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kV
Ambient Operating Temperature-10 to 40° C (14 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
NDAA CompliantJa
CertificationsCE, FCC, IC, Anatel: 05650-25-08356
Software
VLAN802.1Q
Guest Traffic IsolationJa
Application Requirements: UniFi NetworkVersion 9.0.108 and later
Application Requirements: Web ApplicationNej
Application Requirements: Mobile AppNej
