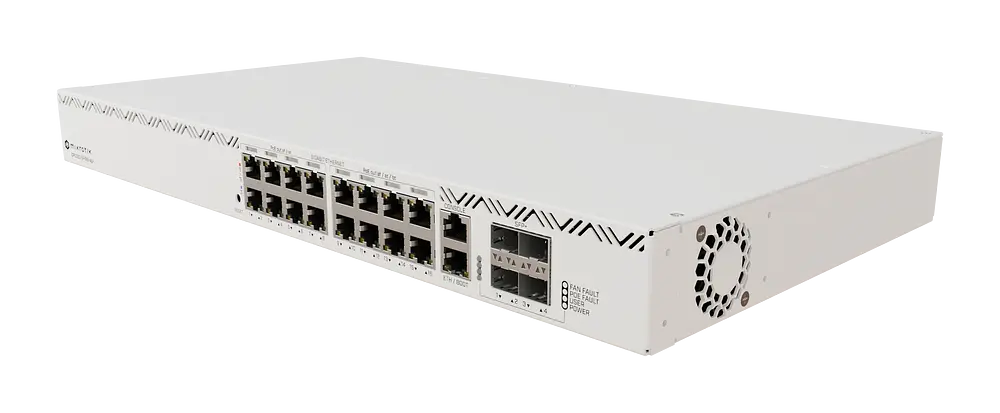

Cloud Router Switch CRS320-8P-8B-4S+RM, 17x Gigabit PoE (8x PoE+, 8x PoE++), 4x SFP+, Rackmount, 600W

Om produktet

Beskrivelse

Cloud Router Switch 320-8P-8B-4S+RM with dual-core 800 MHz CPU, 256 MB RAM, 98DX226S switch chip, 17 x Gigabit Eth ports (8 x 802.3af/at, 8 x 802.3bt PoE-out), 4 x 10G SFP+ ports, RouterOS L5, 1U rackmount enclosure, 600W PSU

Switches

Cloud Router Switch CRS320-8P-8B-4S+RM, 17x Gigabit PoE (8x PoE+, 8x PoE++), 4x SFP+, Rackmount, 600W

MPN CRS320-8P-8B-4S+RM

3.126DKK ekskl. moms

Forventet 31.07.2026

Priser ekskl. moms · kun B2B.

Fejl kan forekomme i billeder og specifikationer.

Levering: 3-5 hverdage
Garanti: 12 måneder
Vægt: 3.5 kg
Datablad: PDF ↓
Blokdiagram: PNG ↓

Video

Se produktet

Tekniske data

Specifikationer

Details
Product code	CRS320-8P-8B-4S+RM
Architecture	ARM 32bit
CPU	98DX226S
CPU core count	2
CPU nominal frequency	800 MHz
Switch chip model	98DX226S
RouterOS license	5
Operating System	RouterOS v7 / SwitchOS
Size of RAM	256 MB
Storage size	32 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-10°C to 50°C
Number of AC inputs	1
AC input range	100-240
Number of PSU slots	2
Frequency (Hz)	50-60
Max total out (A)	17.82 A
Total output current	17.82
CPU temperature monitor	Yes
PCB temperature monitor	Yes
Powering
Max power consumption	600W (1150W with additional PSU)
Max power consumption without attachments	36 W
Cooling type	3 fans
Total output power	963
Voltage Monitor	Yes
PoE-out
PoE-out ports	Ether1-Ether8 (af/at), Ether9-Ether16 (bt)
PoE out	802.3af/at/bt
High voltage PoE-Out current limit	560 (af/at) / 1667 (bt) mA
Number of 1G Ethernet ports with PoE-out	16
Ethernet
10/100/1000 Ethernet ports	17
Fiber
SFP+ ports	4
Peripherals
Serial console port	RJ45
Certification & Approvals
Certification	CE, EAC, ROHS
IP	20
Included parts
Cable	IEC cord
Mounting	Rackmount ears (CRS)
Mounting 2	Cable managment brackets
Del	K-57 kit
