Adgangskontrol

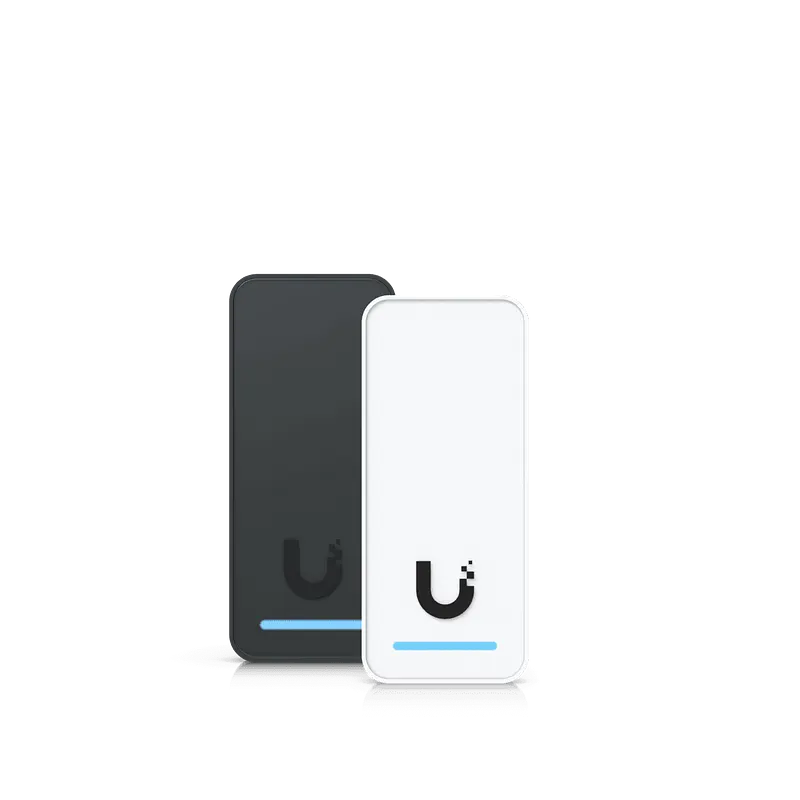

Access G3 Reader

NFC-kortlæser til UniFi Access, bygget til udendørs montering ved døre og indgange

MPN UA-G3
1.010DKK ekskl. moms
1.263DKK inkl. moms
På lager (49)

Flere på fjernlager (15) kontakt os for pris og levering

Levering
3-5 hverdage
Fragt
Gratis over 1.000 kr

Priser ekskl. moms · kun B2B. Fejl kan forekomme i billeder og specifikationer.

Om produktet

Beskrivelse

Access G3 Reader er en kortlæser til Ubiquitis UniFi Access-system. Den læser NFC-adgangskort og understøtter Apple Touch Pass, så medarbejdere kan låse op med kort, telefon eller et håndsving foran læseren. Den har hverken display, kamera eller lyd og fokuserer udelukkende på selve adgangsfunktionen.

Læseren er bygget til udendørs brug og kan monteres eksponeret ved yderdøre, porte og indgange. Med målene 93 x 40 x 36,5 mm passer den til almindelige dørrammer og vægge uden at fylde meget.

Vælg G3 Reader, når du har brug for en enkel og robust læser til et eksisterende eller nyt UniFi Access-anlæg, og ikke har behov for kamera, ansigtsgenkendelse eller skærm. Al administration og rettighedsstyring sker centralt i UniFi Access-appen.

Tekniske data

Specifikationer

Grid overview
AppleTouch Pass
DisplayNej
LivestreamNej
NFCNFC
Physical UnlockHandwave Unlock
SoundNej
WeatherproofOutdoor Exposed
Lock TerminalsNej
AINej
IRNej
ConnectionNej
Lens ResolutionNej
Overview
Dimensions93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
Integrated CameraNej
IR Night VisionNej
ResolutionNej
UniFi Application SuiteAccess
Face RecognitionNej
NFC Card & Keyfob AccessJa
PIN AccessNej
QR Code UnlockNej
Touch PassNej
Apple/Google WalletJa
Mobile UnlockJa
Face UnlockNej
Handwave Request to ExitJa
Fingerprint UnlockNej
Fingerprint CapacityNej
Two-Way Intercom & Doorbell AccessNej
WeatherproofingIP55
Smart Detections (People, Vehicles, Animals)Nej
Tamper ResistanceNej
AudioNej
Maximum User CountNej
Tamper SwitchNej
UL 294 LevelDestructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
NDAA CompliantJa
Mechanical
Weight82 g (2.9 oz)
Enclosure MaterialPolycarbonate, glass
Mount MaterialAluminum alloy
MountingIn-wall, gang box (Included) Junction box (Optional)
Hardware
Indoor and Outdoor UseYes
Networking Interface(1) 10/100 MbE RJ45 port
ConnectivityBLE 4.1 NFC
SecurityNej
Power MethodPoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption5W
Supported Voltage Range48V DC
ESD/EMP ProtectionAir: ± 15kV, contact: ± 8kV
Powered Output RelayNej
Video: Image SettingsNej
Video: Max. Frame RateNej
Video: ResolutionNej
Optics: ResolutionNej
Optics: Field of ViewNej
Optics: SensorNej
Optics: LensNej
Optics: Night ModeNej
SensorsProximity sensor
Display: SizeNej
Display: Screen TechnologyNej
Display: LuminanceNej
Display: Screen OrientationNej
Display: ResolutionNej
MicrophoneNej
SpeakerJa
LEDsR/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>
Button(1) Factory reset
ProcessorNej
NFC Frequency13.56 MHz
NFC Read Range< 30 mm (1.18'')
NFC TechnologyISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 StatementCompliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 GradeGrade assignment: I
CertificationsCE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision levelUA-G3, V01
Ambient Operating Temperature-30 to 45° C (-22 to 113° F)
Ambient Operating Humidity5 to 90% noncondensing
Software
Management ApplicationAccess
Software InformationThe software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>
